Curt Drop
Transform your environment with our new design collection, where elegance meets functionality. Elevate your space with pieces that blend style and comfort seamlessly.
Features
- Automatically drops when power fails or with an optional thermostat triggered by a set high-temperature;
- Available in 120V AC and 200~240V AC, 50/60Hz power supply;
- Reliable built-in micro switch for alarm output;
- NC or NO alarm signal output when drops;
- Reliable holding force by electrical magnet up to 30 Kg (66 lbs.);
- Configurable time delay by internal switches: 1, 2.5, and 5 minutes;
- A low-current electromagnet for durability;
- Torsion spring design for arm quick and reliable release;
- Aluminum enclosure with IP66 design for safety and durability;

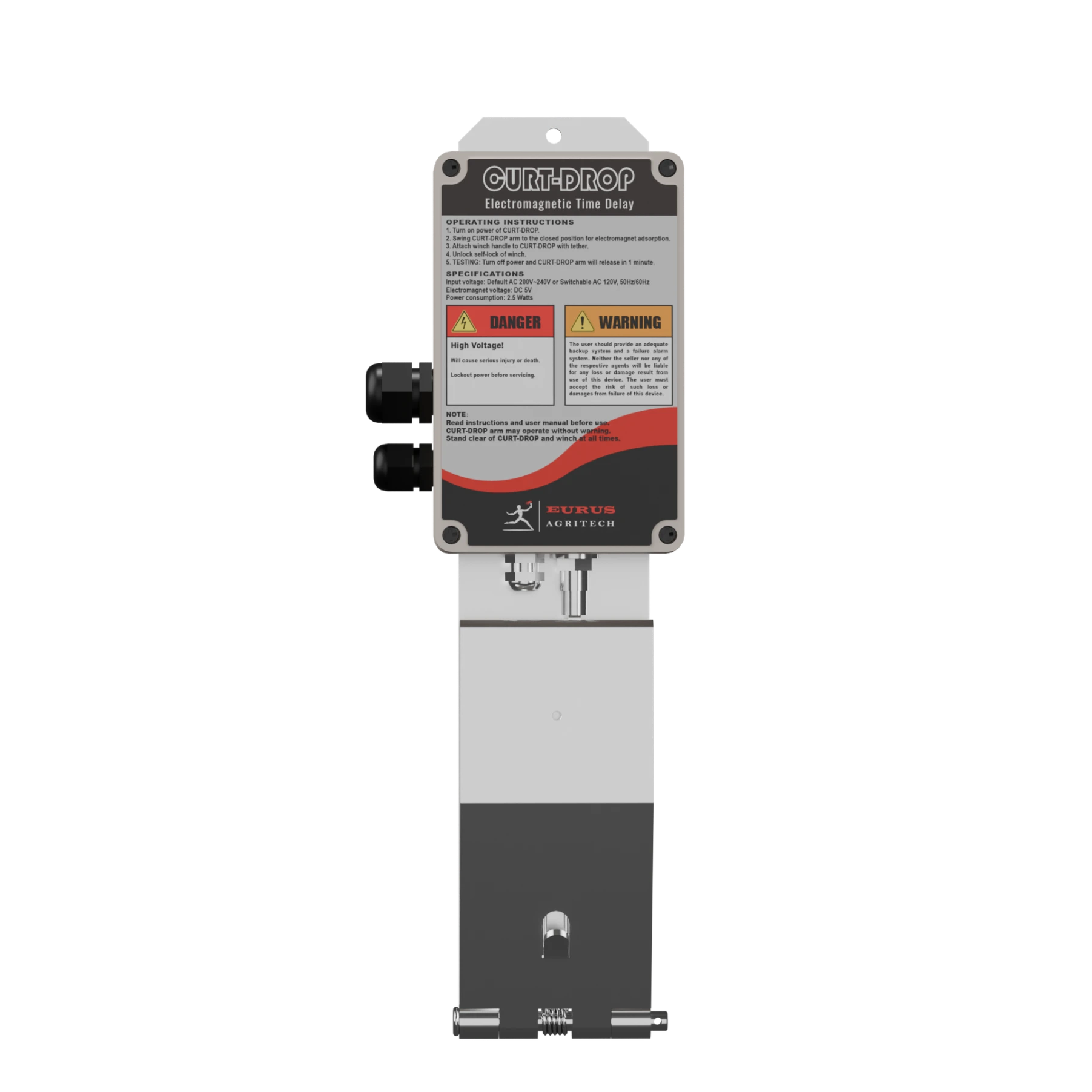

CURT - DROP
For Emergency Opening
Operating Instructions:
1
Turn on power of CURT-DROP.
2
Swing CURT-DROP arm to the closed position for electromagnet adsorption.
3
Attach winch handle to CURT-DROP with tether.
4
Unlock self-lock of winch.
5
TESTING: Turn off power and CURT-DROP arm will release in set minutes.
